679644-01 - RHI 503 - Quad Industry GmbH
Артикул: 679644-01
Наименование: RHI 503
Производитель: Leine & Linde AB
|
|

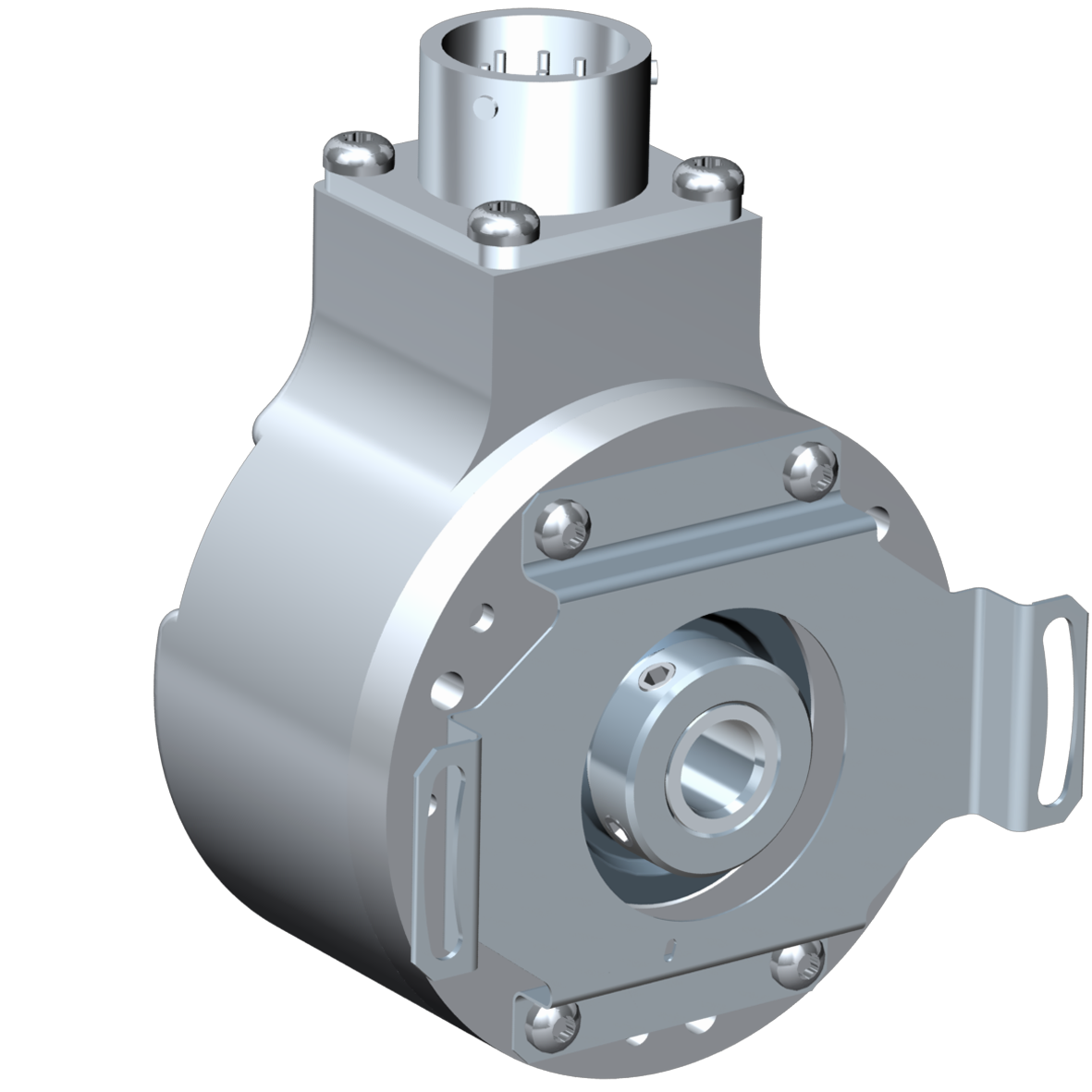

Part number: 679644-01 - Robust ?58 mm encoder with hollow shaft
- Short-circuited protected outputs
- IP67 at housing, IP66 at shaft inlet
OBSOLETE MODEL Product data Type | RHI | | Model | 503 Standard | | Shaft type | ?8 mm blind hollow shaft | | Flange type | 58/59-flange with stator coupling | | Resolution | 10000 | | Power supply | 5 Vdc | | Output signal | TTL | | Connection type | PT connector 8-pin | | Connecting direction | Radial | | Downloads
|
